Hot & Cold Industrial Mixer

Get A Qoute

Solid GreenTech Heating/Cooling Mixer. For throughputs up to over 8,000 kg/h.

Our heating/cooling mixer is the ideal solution when it comes to demanding mixing tasks.

It ensures fabulous product preparation in the field of heating and high performance on
cooling.

Homogenizing, wetting, coloring, heating, agglomerating, bonding, etc.

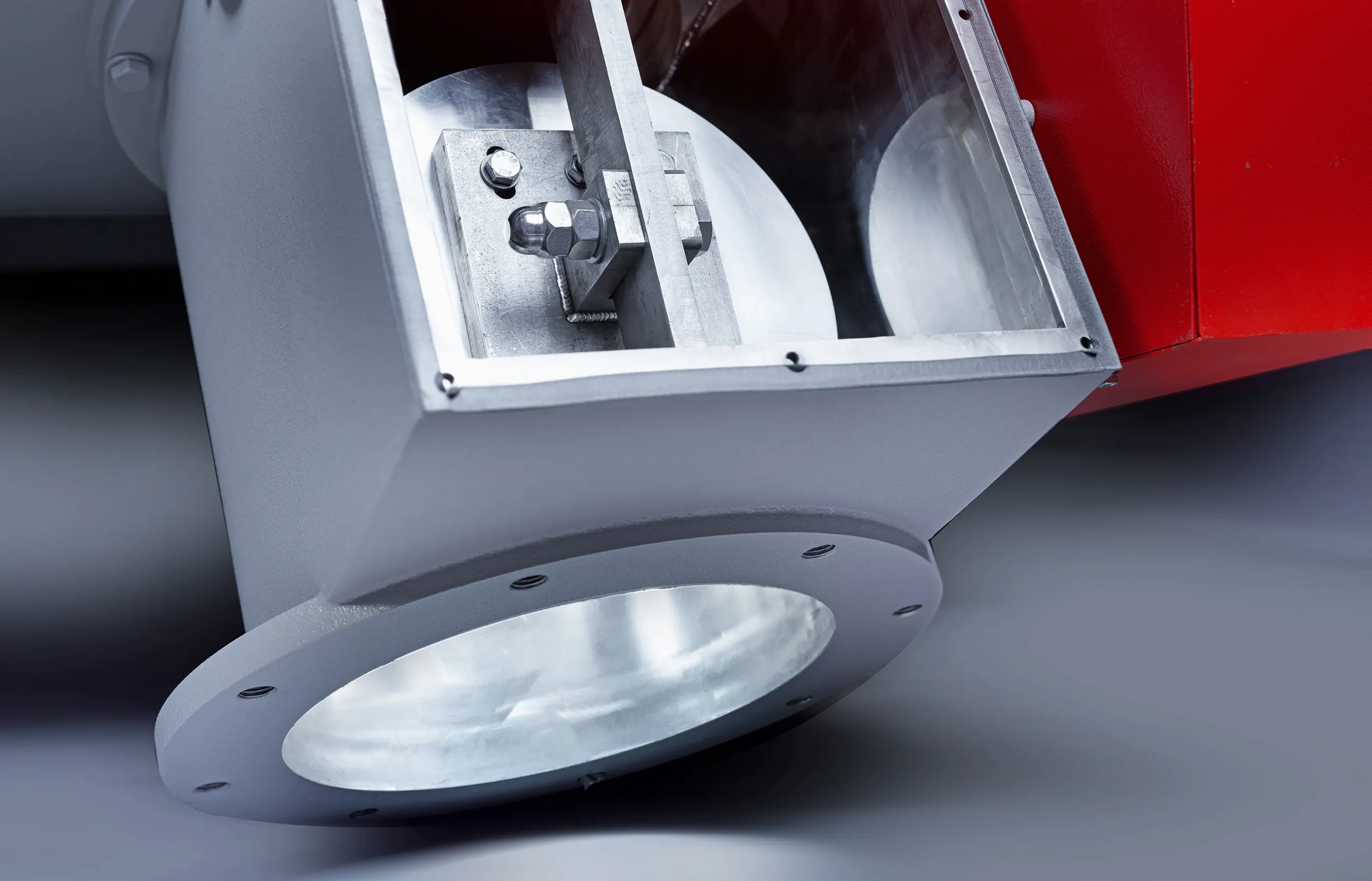

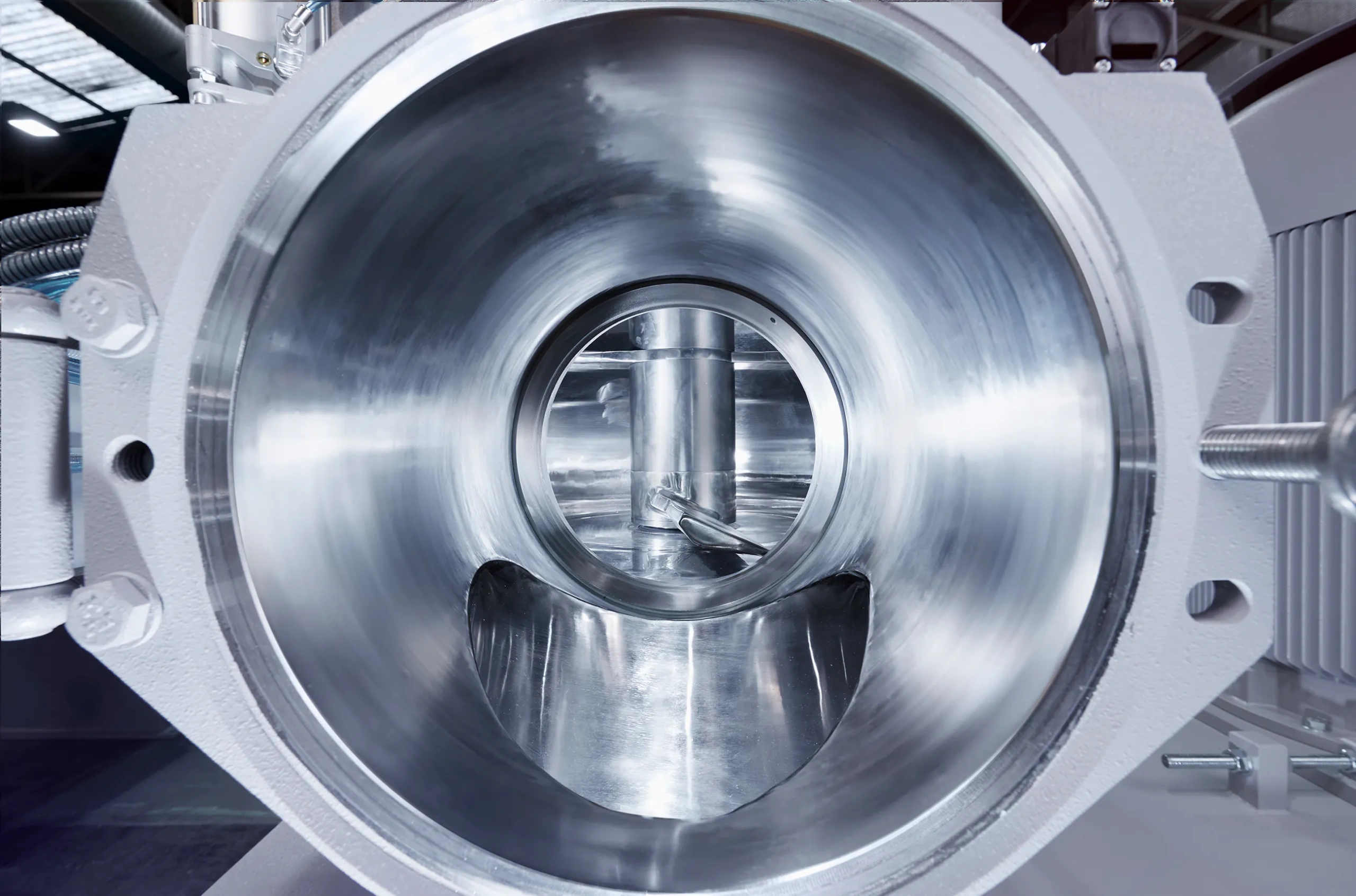

Contour-shaped outlet, therefore free of dead space

Integrated aspiration for perfect moisture application

Size-dependent cooling system with targeted water flow in the base and side walls

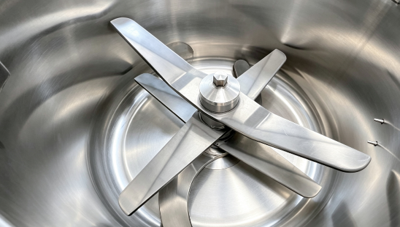

Multi-stage mixing tools for high friction and perfect homogeneity

Additional options such as ATEX version, weighing, injection, remote maintenance, etc.

Design and features

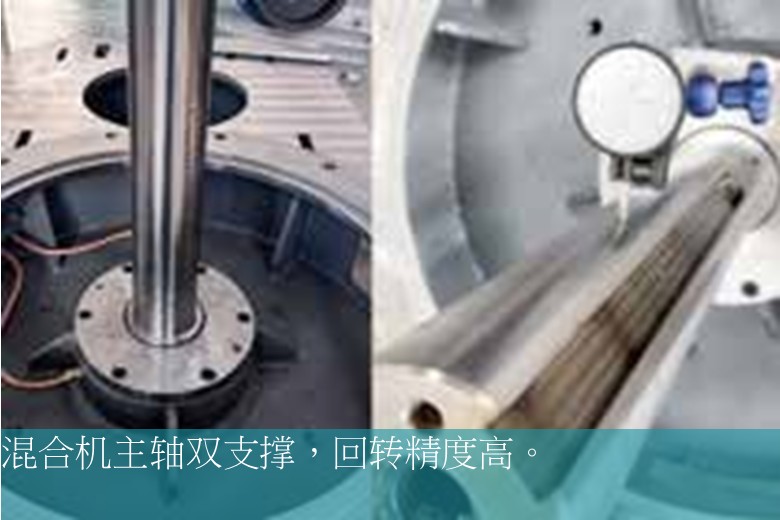

The mixer’s main shaft is supported by dual bearings, ensuring high rotational accuracy.

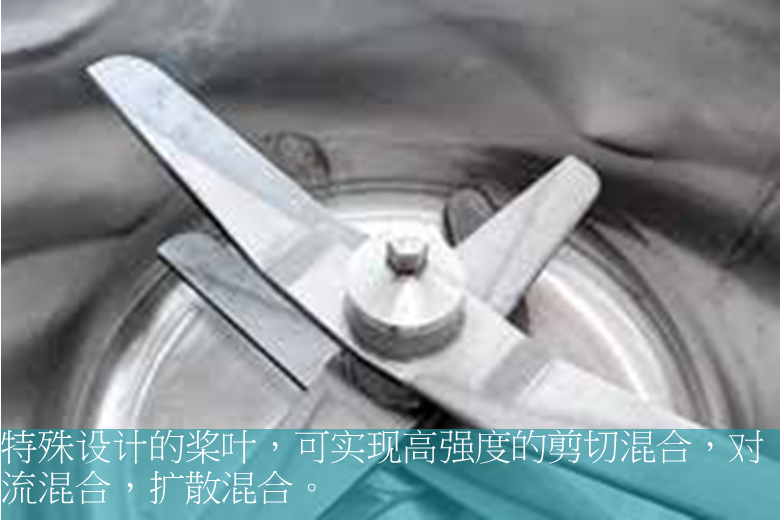

The specially designed blades can achieve high-intensity shear mixing, convection
mixing and diffusion mixing.

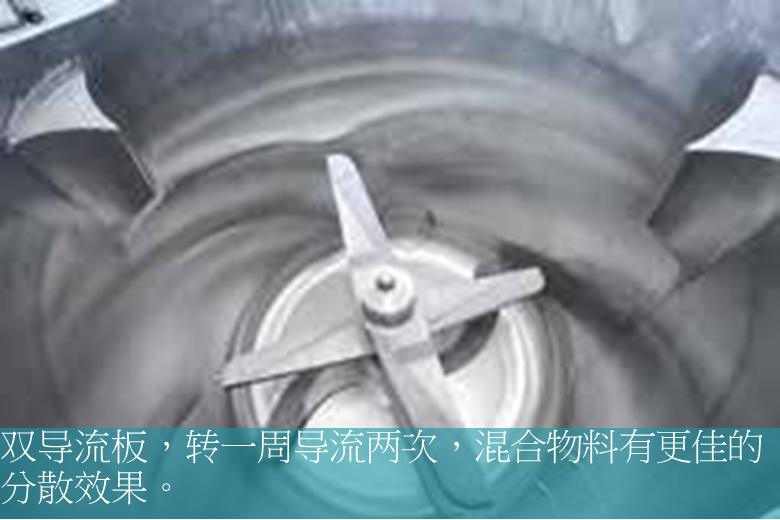

Double baffles, with two times of flow diversion per rotation, ensure better dispersion effect of mixed materials.

The mixer’s main shaft is supported by dual bearings, ensuring high rotational accuracy.

The specially designed blades can achieve high-intensity shear mixing, convection
mixing and diffusion mixing.

Double baffles, with two times of flow diversion per rotation, ensure better dispersion effect of mixed materials.

The mixer’s main shaft is supported by dual bearings, ensuring high rotational accuracy.

The specially designed blades can achieve high-intensity shear mixing, convection
mixing and diffusion mixing.

Double baffles, with two times of flow diversion per rotation, ensure better dispersion effect of mixed materials.

Benefits at a glance. Fast mixing – fast cleaning.

  • applied in various usage like heating, agglomerating, bonding.

  • Quickly changeable process-optimized tools.

  • Combined aspiration and air flow ensures optimum removal of dust and moisture particles.

  • The heating mixers are never single walled.

  • None of the deposits in PVC compounds with hygroscopic stabilizers made the hassle of getting defects on the extruder and on the end product.

  • Full insulation of heating mixers possible

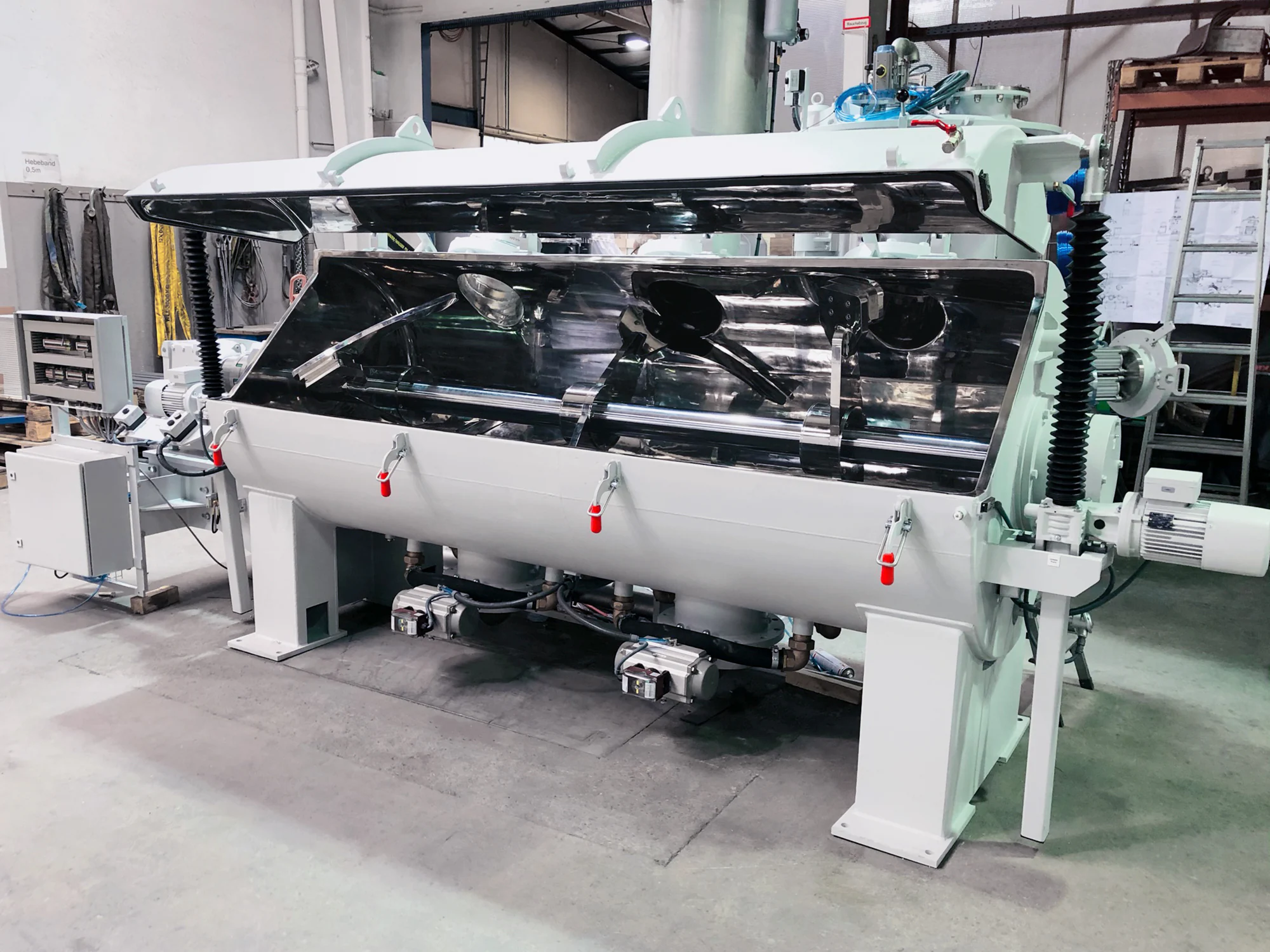

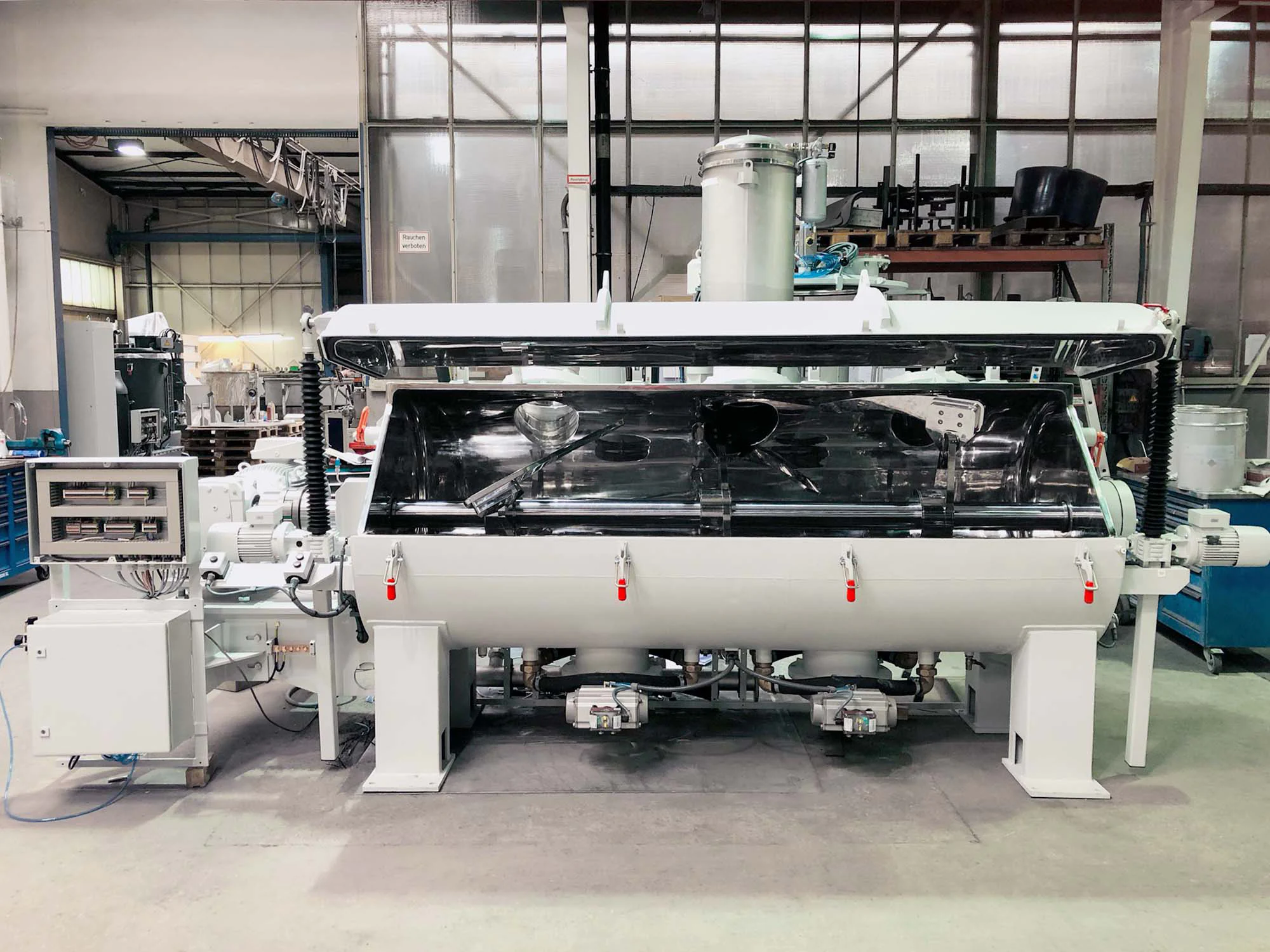

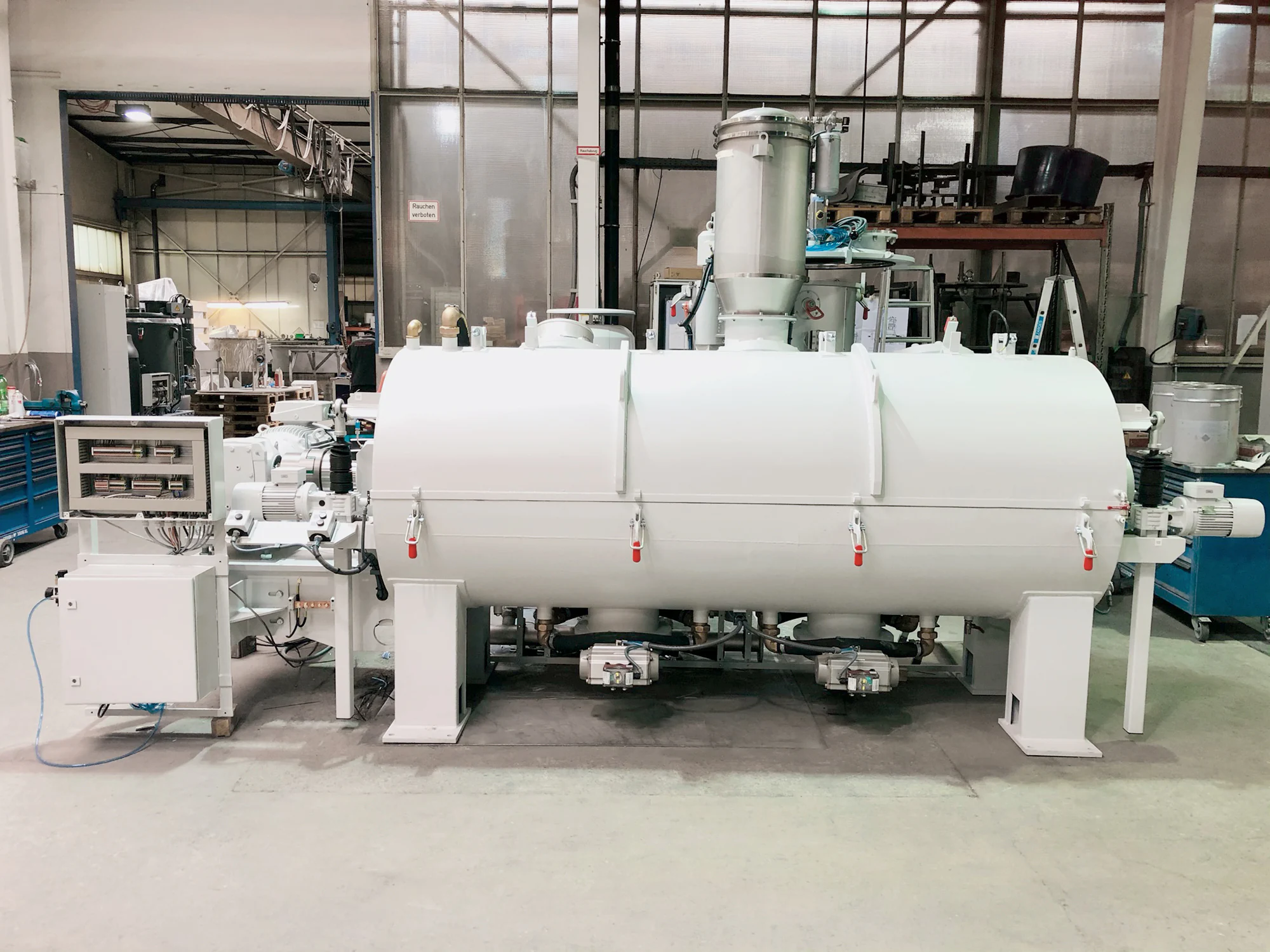

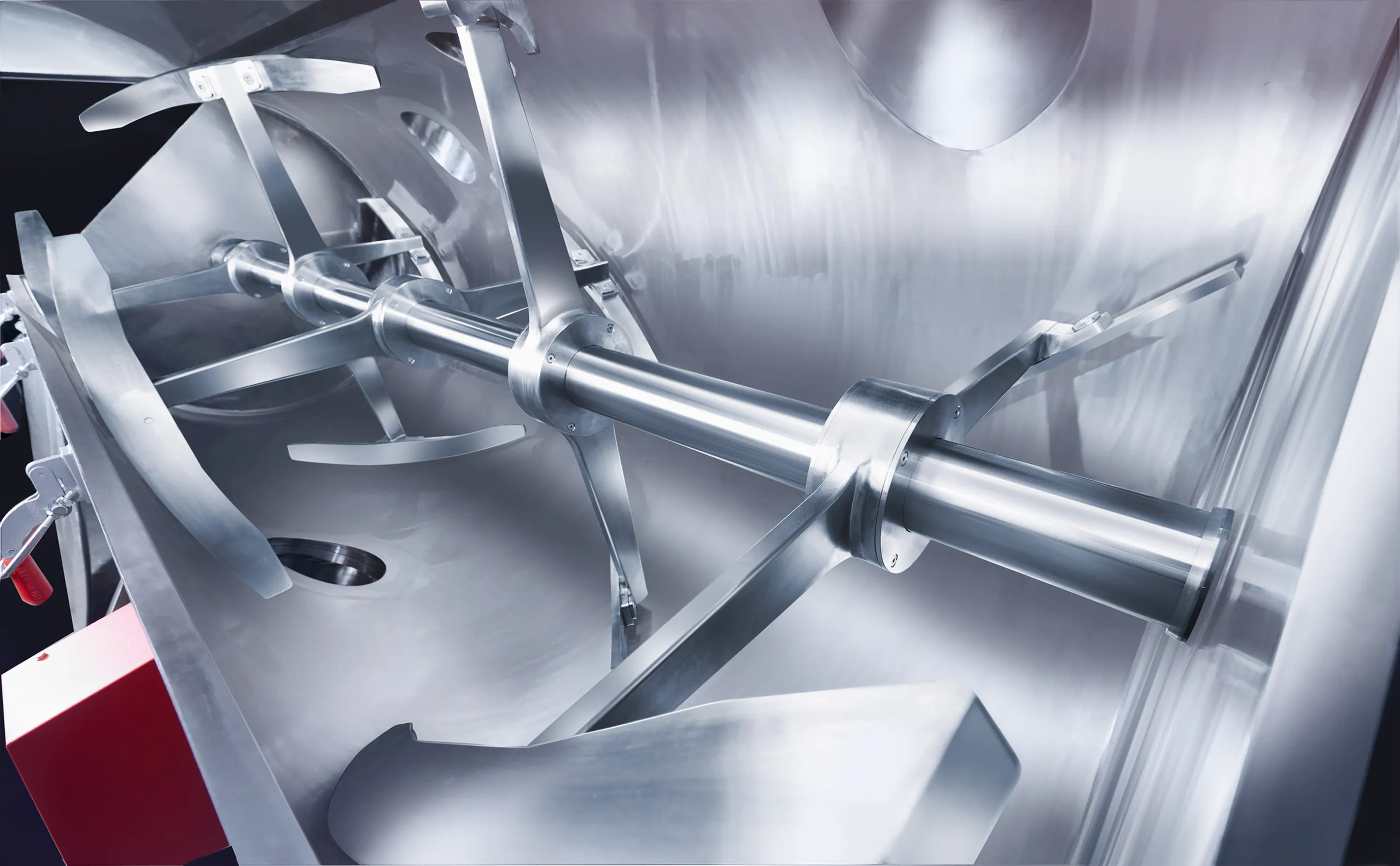

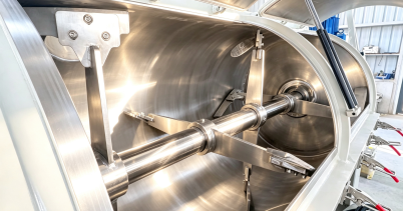

  • Horizontal heating-cooling mixer to throughputs to exceed 8,000 kg/h.

  • High energy performance based upon mixer drive selection.

  • Optimal dehumidification of the mixture is aspired in the form of innovation.

  • Great variety of other equipment to personalize the needs of customers.

  • ATEX versions possible

Checkout My Latest Work

Control. Well laid out control panel.

Our heating-cooling mixer combinations are controlled by a Siemens S7-1500 PLC and are in accordance with the current needs of safety, efficiency, and economy.
Optimum integration of the mixer components is guaranteed by the development and Programming of the control system of a single source.

Process visualization
  • System status
  • Process parameters
  • Machine setting
  • Error management
Operating Modes
  • Manual mode
  • Automatic Mode
  • Cleaning Mode
Process parameters
  • Mixing parameters
  • Mixing time
  • Mixing tool speed
  • Existing consumption drive
  • Torque (optional)
  • Liquid injection (optional)

Functionality. For perfect mixing results

The modular mixing tool that creates a mixing drum in the heating mixer at a circumferentialA
velocity between 10 and 40 m/s produces a high friction force, resulting in heating of the material
to be mixed.
All ingredients in the recipes are mixed evenly, resulting in an even mixture in the mixing drum.
When the target temperature is achieved, the mix is emptied into the concomitant cooling mixer
through the outlet that is contour-shaped.
Heating, or tempering, coating, agglomeration, or dispersion – all is possible, with the modular
The concept of the heating mixer is ideally suited to meet the customer’s needs.

Mixing methods. Various applications for high outputs.

The Solid Green Tech heating/cooling mixers can be used in many mixing processes in the high-throughput range. Our mixers ensure the most optimal mixing quality in a massive variety of uses. Our experts develop the exact coordination of the technology and, together with you, the control parameters.

Applications
  • Dry blends of hard or soft PVC, masterbatches, additives, and powder mixtures (as PVC mixers)
  • Preparation of plastic compounds, color masterbatches, powder coatings, or additives
  • Mixing processes in battery technology and the plastics industry (as a battery mixer/plastics mixer)
  • Applications with increased heating or cooling requirements, agglomeration, dispersion, or coating and much more

Hot Mixer Parameter

Mixer Model R2500/ WL6500 R2000/ WL6500 R1500/ WL6000 R1250/ WL4500 R1000/ WL3000 R800/ WL2500 R600/ WL1600
Content (L)
2500
2000
1500
1250
1000
800
600
Effective content (L)
70%
70%
70%
70%
70%
70%
70%
Driving power (kw)
630
500
450
315
200
160
132
Blade otation speed (r/m
450
480
520
550
580
600
700
Heating method

Self-friction

Self-friction

Self-friction

Self-friction

Self-friction

Self-friction

Self-friction

Cold Mixer Parameter

Mixer Model R2500/ WL6500 R2000/ WL6500 R1500/ WL6000 R1250/ WL4500 R1000/ WL3000 R800/ WL2500 R600/ WL1600
Content (L)
6500
6500
6000
4500
3000
2500
1600
Effective content (L)
70%
70%
70%
70%
70%
70%
70%
Driving power (kw)
75
75
55
45
37
30
15
Blade otation speed (r/m
75
75
75
75
75
75
75
Heating method
Recycle water cooling
Recycle water cooling
Recycle water cooling
Recycle water cooling
Recycle water cooling
Recycle water cooling
Recycle water cooling
Material discharge Method
Pneumatic discharge
Pneumatic discharge
Pneumatic discharge
Pneumatic discharge
Pneumatic discharge
Pneumatic discharge
Pneumatic discharge
Mixing/cooling time (mins)
<10
<10
<10
<10
<10
<10
<10
